Lynxter S300X - LIQ21 | LIQ11 NEST GEL

THE GEL EXTENSION FOR SILICONE 3D PRINTING

Enhance your silicone 3D printing with the silicone NEST - GEL Extension : Perfect for detailed, high-quality silicone printing with superior reliability.

Print thin and lattice structured silicone parts with the gel immersion approach on your S300X - LIQ21 | LIQ11 with the NEST - GEL starter kit

Make inquiry

Technical data and information

Build volume:	X 300 – Y 250 – Z 200 mm
Layer height:	100 μm to >1 mm
X, Y, Z resolution:	X-Y: 12.5 μm, Z: 1.0 μm
Printing Materials	Medical RTV2 Silicone (5, 10, 25, 40 ShA) Industrial RTV2 Silicone (45 ShA) Polyurethane* (50 to 85 ShA) LSR* Epoxy* *Coming soon
Thermal environment:	Heated Build Plate: 20°C to 80°C Heated Enclosure: 20°C to 40°C
Extrusion	MSingle and Dual Independent Extrusion
Toolhead Configuration	Two-part LIQ21 – one-part LIQ11
Max. toolhead moving speed:	X-Y : 500 mm/s, Z : 40 mm/s
Build surface:	Removable Hot-Swappable Machined Surface
Manufacturing Job Security	Consumables Run-out Detection Printing Resumption after Power Loss
Removable toolhead:	Modular. Quick mechanical,electronic and water-cooling connectors.
Manufacturing file format:	Gcode standard
Customizable firmware:	Customizable Lynxter Firmware (based on RepRap firmware) – Simplify3D Software (slicer)
Power Supply	230 V AC 8A 50-60 Hz
Control	Standalone touchscreen and Web interface
Connectivity:	Ethernet
Automatic calibration:	Build Surface Leveling Machine Geometric Correction Tool Height Calibration Inter-nozzle Offset Calibration
Dimensions:	W 991.22 x L 720 x H 984.5 mm
User Health and Safety:	Double HEPA H14 Filtration Activated Carbon Machine Access Locking
Manufacturing Job Security	Consumables Run-out Detection Printing Resumption after Power Loss

Product descriptions

APPLICATIONS

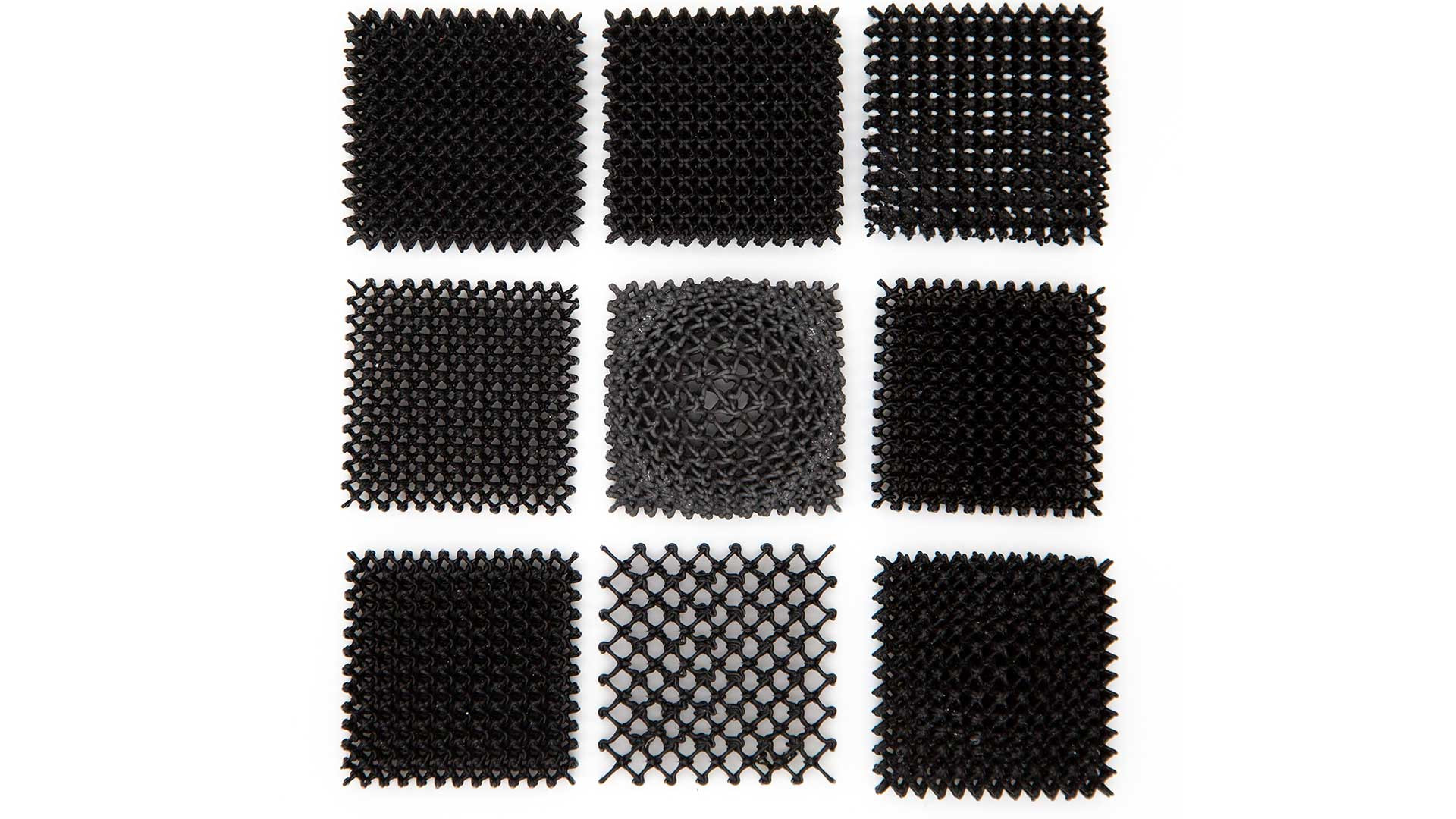

SHOCK ABSORBERS & CUSHIONING

Unique non-planar lattice structure

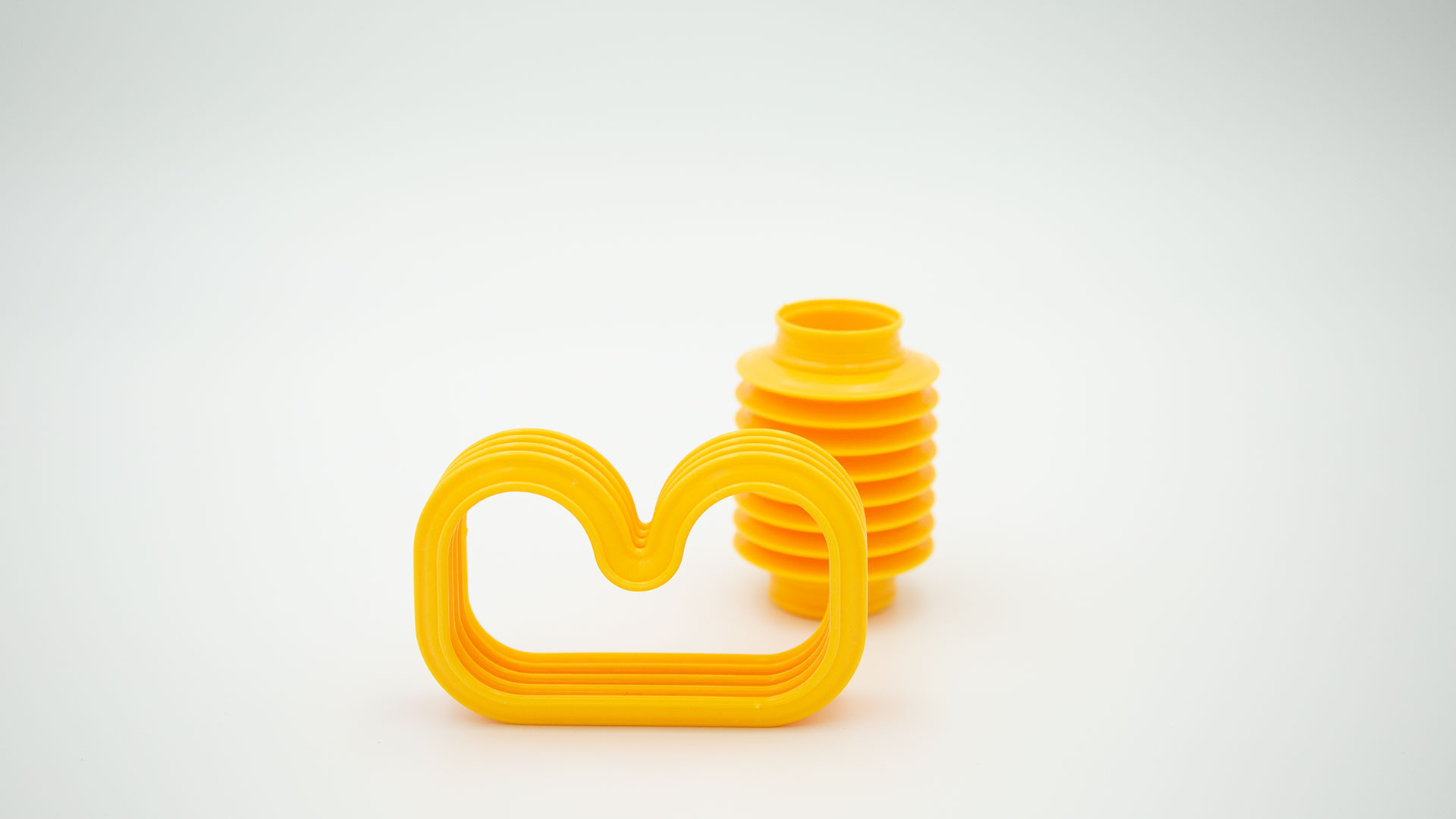

INDUSTRIAL BELLOWS

Thin, smooth, and challenging hollow geometry designed for functional protection

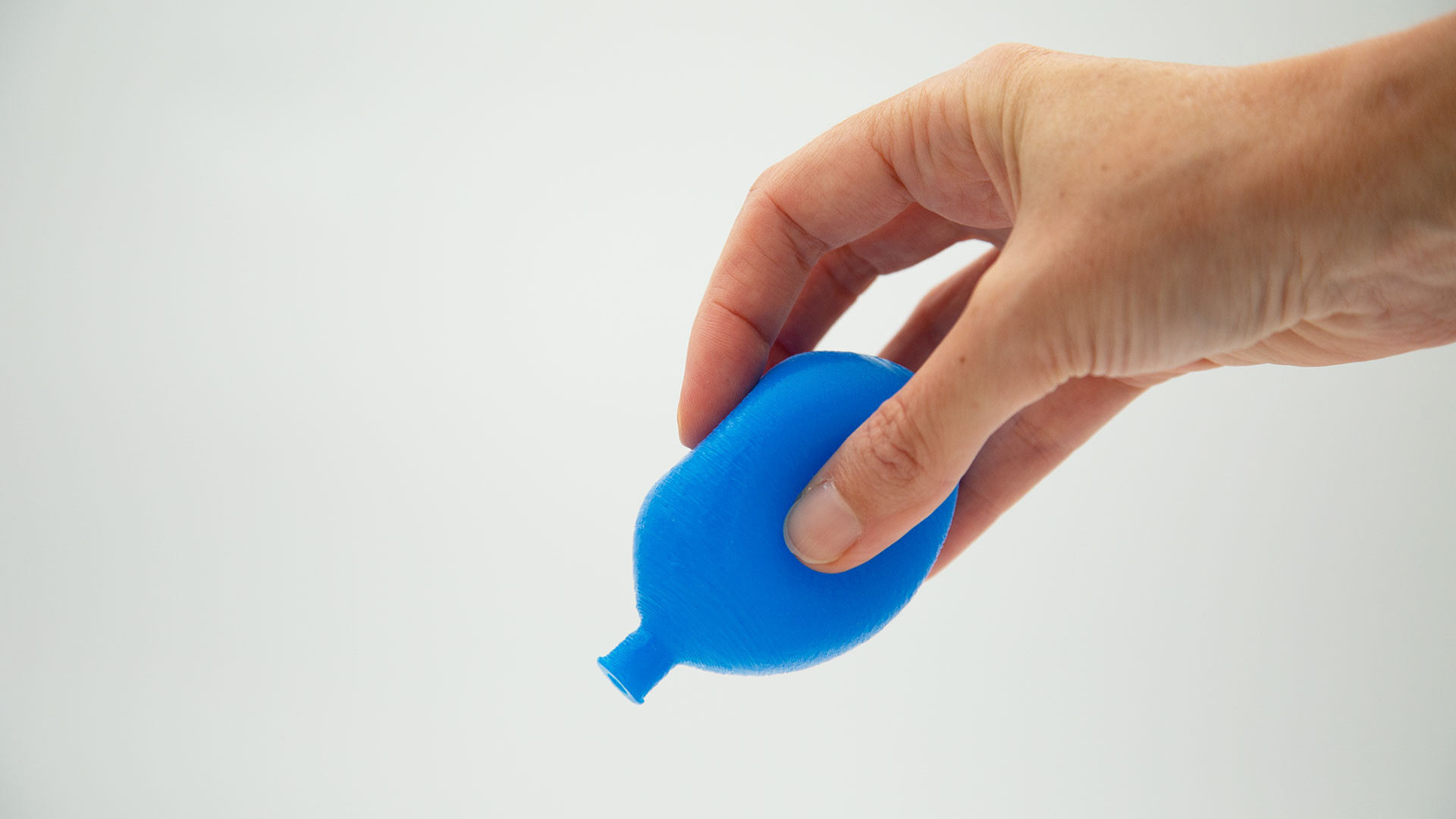

AIR BULBS

Airtight, flexible vessel with exceptional design freedom
